手提式光學轉速表 Portable Tachometer

PT99 手提式光學轉速表 Portable Tachometer

PT99

Pocket Tach 99 is a digital, battery-powered portable non-contact optical tachometer (red LED), which operates up to 36 inches from a reflective tape target using an LED light source. The ergonomic design allows safe, direct line-of-sight viewing of both the rotating target and the display at the same time, while providing a no-slip rubber surface for single hand operation. Pocket Tach 99 in the value-leader of the world-class Pocket Tach Series from Monarch.



SPECIFICATIONS

Display: 5 Digits, 5 Alpha-numeric LCD
Range: 5 to99,999 RPM
Accuracy: ±0.01% or ±1 Digit
Resolution: Autoranging: 0.001 to 1.0 RPM
Fixed: 1 Digit RPM
Operating Range: 2 inches to 36 inches, ±30°
Memory: Maximum, Minimum and Last
Power: (2) “AA" 1.5 VDC batteries (20 hours)
Environmental: 5° to 40°C (40° to 105°F)
80% RH up to 31°C (88°F)
Dimensions: 6.92 “H x 2.4″W x 1.6″D
Weight: 7 oz. (210 g)
Standards: IEC1010-1

PT99 Ordering Information
Item No. 6109-010 PT-99 Pocket Tach 99 basic non-contact optical tachometer with 12 inches of T-5 Reflective Tape




Pocket Laser Tach 200

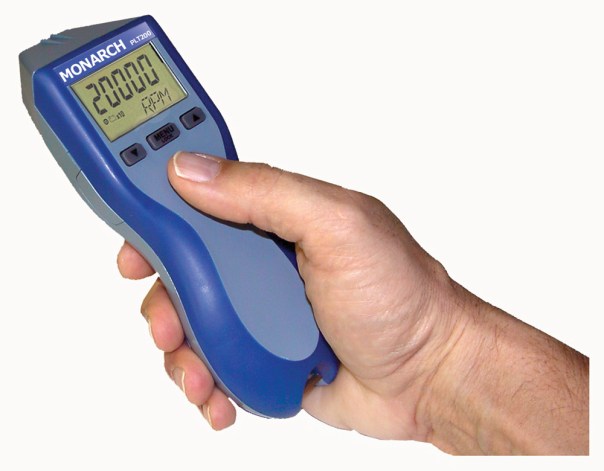

plt200handhires

digital contact/non-contact tachometer

Pocket Laser Tach 200 (PLT200)
PLT200 is a digital, battery-powered portable optical tachometer, which operates up to 25 feet* from a reflective target using a laser light source. The ergonomic design allows safe, direct line-of-sight viewing of both the target and the display at the same time, while providing a non-slip rubber surface for single hand operation.



Multi-Function
PLT200 is a 32 function Tachometer/Ratemeter, Totalizer/Counter and Timer (stopwatch), which is programmable in both English and Metric linear rates. Support is built-in for both our optional Remote Contact Assembly (RCA) and our Remote Sensors. PLT200 has a TTL compatible Pulse Output to trigger devices like data collectors or stroboscopes. The KIT is supplied complete with a Remote Contact Assembly including concave and convex tips and a 10 cm linear speed wheel and a 5 foot roll of reflective tape all in a latching carrying case.
* performance subject to intensity of ambient light irradiation.

Pocket Laser Tachometer

FEATURES
All Pocket Tach Series instruments provide a unique ergonomic design which allows you to safely observe both the display and the rotating target at the same time.
  • Operating Range up to 25 feet* (Class 2 visible laser)
  • Accepts Remote Contact Assembly (optional)
  • Accepts Remote Sensors (optional)
  • TTL Pulse Output (requires optional 6 foot BNC Cable)
  • Auto Ranging/Fixed Decimal (user selectable)
  • English and Metric Rates
  • Tripod Mounting Bushing
  • On-Target and Low Battery Indicators
  • Rugged Rubberized Housing
  • N.I.S.T. traceable Certificate of Calibration included
Exclusive Features no other tachometer provides this versatility
PLT200 is the only portable LASER tachometer available with remote sensors. Plug in any Monarch Remote Sensor for extended range and special applications. TTL Output standard. Requires 6 foot cable with BNC connector, other cables available.
Remote Sensors

Remote Optical Sensor (ROS-P) ideal for most applications up to 36″ from reflective tape target. 8 foot cable. Magnetic Sensor (MT-190-P) perfect for gear tooth applications up to 0.25″ gap. 8 foot cable. Infrared Sensor (IRS-P) used for high speed applications up to 0.5″ gap.  8 foot cable.
Pocket Laser TachometerRemote Contact Assembly
Unique handle grip allows user to safely make contact measurements while reading the display in a safe position. Works with all Monarch Pocket Tachometers capable of linear rates.
Pocket Laser TachometerEvery PLT200 and PT99 comes with a 1/4″ -20 UNC bushing for tripod mounting. Lock the power “on" for true “hands-free" operation



PLT200 SPECIFICATIONS
Display: 5 Digits, 5 Alpha-numeric LCD
Range(s): Optical: 5 to 200,000 RPM
Contact RPM: 0.5 to 20,000 RPM  (see rates below)
Accuracy: Optical:±0.01% of reading
Contact:±0.05% of reading (rpm)
Totalizer: 1-999,990
Resolution: 0.001 to 10 RPM (range dependent)
Operating Range: 2 inches to 25 feet*, ±70°
Memory: Maximum, Minimum and Last reading
Power: (2) “AA" 1.5 VDC batteries (30 hours)
Environmental: Temp: 5° to 40°C (0° to 100°F)  RH:80% RH up to 31°C (88°F)
Dimensions: 6.92 “H x 2.4″W x 1.6″D
Weight: 7 oz. (210 g)

RATES:

10cm Contact Wheel

12 inch circumference Contact Wheel

Inch/min

1.969 to 78,740 IPM

6.000 to 144,000 IPM

Feet/min

 0.164 to 6,561.7 FT/M

0.500 to 12,000 FT/M

Yard/min

 0.055 to 2,187.2 YPM

0.167 to 4,000.0 YPM

Cm/min

 5.000 to 200,000 cm/M

15.240 to 365,760 cm/M

M/min

 0.050 to 2,000.0 M/M

0.153 to 3,657.6 M/M

also reads engineering units in per second and per hour



ORDERING INFORMATION
ITEM NUMBER MODEL DESCRIPTION
6125-011 PLT200 KIT Pocket Laser Tachometer 200 Kit includes: Tach, RCA, Carrying Case, N.I.S.T. and 5 ft roll of T-5 reflective tape.
6125-010 PLT200 Pocket Laser Tachometer 200 includes: tachometer/timer/totalizer with N.I.S.T. traceable certificate of calibration, and 12″ of Reflective Tape.
