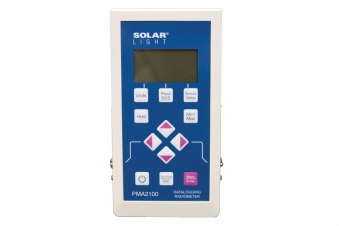

光學數據記錄儀 Model PMA2100 Dual-Input Data Logging Radiometer

Model PMA2100 Dual-Input Data Logging Radiometer

Solar Light’s Model PMA2100 Dual-Input Data Logging Radiometer is a research grade instrument that can be used with over 85 different PMA-Series Digital Sensors. It functions as a light meter, photometer, and UV meter measuring UVA, UVB, UVC, Visible, and IR light.

Solar Light’s Model PMA2100 Dual-Input Data Logging Radiometer is a research grade instrument that can be used with over 85 different PMA-Series Digital Sensors. It functions as a light meter, photometer, and UV meter measuring UVA, UVB, UVC, Visible, and IR light. These intelligent meters use advanced sensor detection and data processing, allowing the user to add new sensors quickly and easily to measure different kinds of light without having to use a different meter. They feature graphic display, data logging, complex processing algorithms, selectable units of measure, averaging, tracking minima and maxima, dose integration and programmable alarm thresholds – all in a portable, light weight device.

Product Options:

PMA2100 product bundle features the PMA Data Logging Organizer software (sample rate in minutes,) a battery charger, a USB cable, and a hard cover carrying case.

PMA2100B basic model with no data logging, case, or accessories.

PMA2100C product bundle features the PMA Datalogging Organizer software (sample rate in seconds,) a battery charger, a USB cable, and a hard cover carrying case.

Analog Output is 0-4.5VDC and is standard on all models.

Sensors sold separately.

U.S. Pat. 5,946,641

U.S. Pat. 5,790,432

Model PMA2122 Digital Germicidal UVC Sensor (UVGI)



Solar Light’s Model PMA2122 Digital Germicidal UVC Sensor provides fast and accurate dose measurements of the effective Ultraviolet Germicidal Irradiation (UVGI).

Ultraviolet Germicidal Irradiation (UVGI) Guidelines:
PMA 2122: UVC intensity <1500 uW/cm2
PMA 2122G: UVC intensity >1500 uW/cm2

Other available sensors

UVA Sensors
PMA2110 UVA
PMA2112 UVA High Intensity Probe
PMA2113 UVA with Liquid Light Guide Adapter
PMA2114 UVA with Beam Splitter Adapter

UVB Sensors
PMA2101 UVB Erythemally Weighted
PMA2103 UVB Erythemally Weighted with Liquid Light Guide Adapter
PMA2105 UVB Erythemally Weighted with Beam Splitter
PMA2106 Unweighted UVB

UVA + UVB Sensors
PMA2107 UVA+ UVB Sensor

UVC Sensors
PMA2122 Germicidal UV Detector (UVGI)

UV Safety Sensor
PMA2120 UV Radiation Safety Detector

Visible Sensors
PMA2121 Blue Light Safety Detector
PMA2123 Bilirubin Phototherapy Detector
PMA2130 Visible Photopic
PMA2131 Visible Scotopic
PMA2132 Visible Photosynthetically Active Radiation
PMA2133 Visible Luminance Probe

Photostability Sensors
PMA4100 CALReady™ Sensors

Infrared and Full Spectrum Sensors
PMA2140 IR and Visible Global Radiometer
PMA2144 Solar Sensor Class II Pyranometer
PMA2145 Solar Sensor Class I Pyranometer
PMA2142-10 Full Spectrum 10 Watt Laser Power Detector
PMA2142-40 Full Spectrum 40 Watt Laser Power Detector
PMA2143 Flat Response Thermopile

Total Irradiance Sensors for Compliance with ISO and FDA SPF Testing Regulations
PMA2151 Total Irradiance from LS1000-Series Simulators
PMA2153 Total Irradiance from 8mm Liquid Light Guide Simulators
PMA2155 Total Irradiance from 16S-Series Simulators
PMA2158 Total Irradiance from Homogenizer-Equipped Multiport® Simulators

Temperature Sensors
PMA2160 Available Probes Include: PMA2161K Surface Temp Probe, PMA2162K Miniature Temp Probe , PMA2163K Stainless Steel Immersion Probe, PMA2164K Stainless Steel Air/Gas Probe
PMA2166 K-type Therocouple Probe
PMA2170 Relative Humidity, Dewpoint & Temp. Probe

Quadrant Sensor Assembly
PMA2174 Measures Beam Uniformity from Homogenizer-Equipped Multiport® Solar Simulators

Custom Wavelength Sensors and Detectors
PMA2180 Custom Narrowband Sensor with Specific Filter
PMA2181 Custom Broadband Sensor with up to Two Specific Filters



---
