海綿針孔儀 Holiday Tester

Holiday Detector

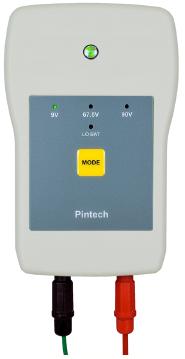

The Pintech is a multi-voltage Pinhole Detector that uses the wet sponge principle to detect through-pinholes, cracks and damaged areas on non-conductive coatings on conductive substrates. These flaws would eventually lead to corrosion and premature failure of the coating.

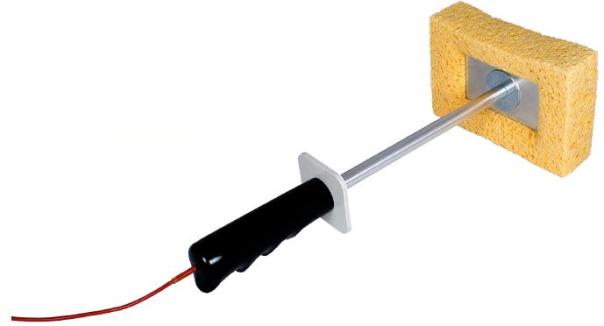

Operation is by a wet sponge moistened with a wetting agent, being moved over the coating. The wetting agent penetrates any pinhole and makes a conductive path through to the substrate. The Pintech detects this conductive path and indicates that a pinhole has been detected by sounding an audible alarm and giving a visual warning by a red flashing indicator. The flaw can now be marked for repair and further testing can be resumed.

The Pintech has test voltages of 9 Volts, 67.5 Volts and 90 Volts, which are easily selectable.

Optional Calibration Certificates are available with traceability to UKAS.

Supplied with Sponge Assembly, Earth Cable and Carrying Case.

Complies with International Standards
BS EN ISO 8289 A
ASTM G62-87
BS 7793-2
ASTM G6-83
ASTM D-5162
NACE RP 0188

Pintech Specifications
Part No: S3002
Range: 9V / 67.5V / 90V
Maximum Test Thickness 9V: 300μm, 12mils
Maximum Test Thickness 67.5V: 500μm, 20mils
Maximum Test Thickness 90V: 500μm, 20mils
Accuracy: 1%
Sponge Size: 150 x 100 x 30mm

Accessories
NS001 – Calibration Certificate UKAS traceable
SA002 – Extension Rod 500mm
SA003 – Extension Rod 1000mm
SA601 – 50mm diam Circular Sponge, 200mm extension
SA602 – 100mm diam Circular Sponge, 200mm extension

---
