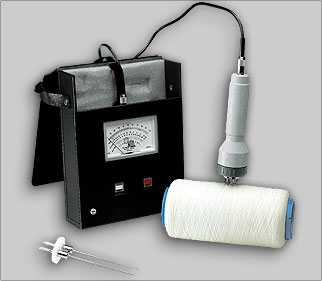

TMM0803 紡織品水分測定儀 Textile Moisture Meter

以確定紗線線軸，織物輥，絲，纖維等的殘留水分

測量原理
水分含量通過測量導電率來確定總成正比的水分含量。

Textile Moisture Meter

To determine the residual moisture of yarn bobbins, fabric rolls, filaments, fiber flocks etc.

TMM0803

Special Features
Easy to use for many applications
Multiple scale for direct readings for wool, rayon and cotton, as well as 0 – 100 scale for comparison tables used for other materials like Polyester, Polyamid and many material mixtures

Direct readings for wool, rayon and cotton,
and 0 – 100 scale for comparision tables Comparision tables for 36 fiber
types

High accuracy and reproducibility
Portable, battery-operated
Optionally available: Specific Test Report 3.1 according EN 10204 with calibration report

Standard Features

A wide choice of needles, knifes, rollers and surface electrodes for many applications

Compact housing supplied in leather carrying case with neck strap

Measuring principle
The moisture content is determined by measuring the electrical conductivity of the material which always is proportional to the content of the moisture.

Comparison Table

Overview of fiber types listed in manual. For these fibers the moisture can be determined using the comparison tables and the 0 – 100 scale.

Available Models

Model Description
TMM0803 moisture meter with standard accessories (complete)

Standard Accessories

Measuring Cable 200
Length 1 m
Order number: 200

Electrode Holder 204
To take up various electrodes, weight 100 g
Order number: 204

Needle Electrode 205
For measuring yarns, cross-wound bobbins and hanks
needle length 25 mm, weight 40 g
Order number: 205

Needle Electrode 207
Same as No. 205 for measuring yarns, cross-wound bob-
bins and hanks, etc., needle length 100 mm, weight 40 g
Order number: 207

Accessories (optional)

Calibration Report
Inspection Certificate 3.1 according DIN EN 10204
including a calibration report is optional available.

Delivery Includes
Instrument with leather carrying case and battery, 1 connecting
cable no. 200, electrode holder no. 204, electrodes no. 205 and
no. 207, 1 operating instructions with comparison tables in
5 languages (german, english, french, spanish, italian)

Specification

Measuring ranges: Wool: 8 to 24.5% moisture content
Rayon: 3 to 23% moisture content
Cotton: 2 to 12% moisture content
Comparison measurement: 0 – 100 scale
Battery: 9 V E-block
Weight net (gross): Approx. 900 g (1300g)
Dimensions: 200 x 250 x 70 mm (LxWxH)

Specifications subject to change without notice!
