ETC-50 推拉力計記錄儀連電腦軟件

產品簡介：

產品名稱：推拉力計
數顯式推拉力計是小型多功能高精度的推拉負荷測試儀器。適用於各種產品的推拉負荷測試、插拔力測試，破壞試驗等。數字顯示分辨率高，使用方便，可連接電腦同步顯示試驗力曲線圖及試驗過程記錄追溯，為新一代高效高精度的推拉力測試儀器。

特點：

高精度高分辨率：精度0.5級，最小讀數達0.001N；
峰值保持功能：可抓取測試中的峰值；
峰值保持自動解除功能：峰值保持時間（1~10秒）自由設定；
比較功能：上下限偏差值自由設定，紅綠指示燈及蜂鳴器自動聲光報警設定；
記憶功能：可存儲10組測試數據，平均值計算功能；
三種單位變換：N、kgf、lbf三種單位自動換算；
LCD液晶屏可翻轉顯示：按住單位鍵3秒後放開，可翻轉LCD液晶屏顯示方向；
自動關機功能：關機時間（1~60分鍾）自由設定；
RS-232C串口輸出，可連接至微型打印機或將數據傳送至電腦、直接保存到電子表格中，做分析、打印等相關處理；
專利設計：ZL200430151019.3、ZL200620013022.2。

1000N = 100Kg

標配軟件﹕

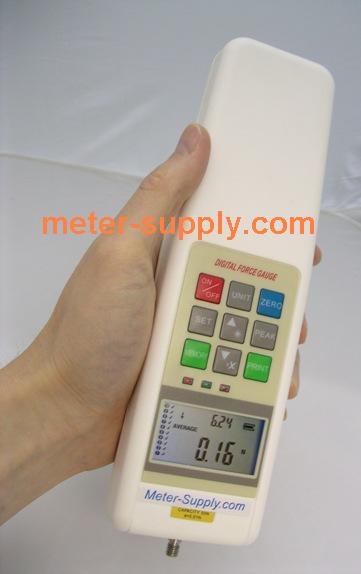

ETC-50 Digital Force Tester Gauge Meter

Function

The ETC series has its own characters, with facility, high resolution, which can be used not only for simple measurement of tension/compression force but also used for various testing purpose; such as switch test, connector insertion/withdraw test, and fracture test, is efficient push pull testing equipment in a new generation.

Character

High accuracy & High resolution
The series have achieved extremely high accuracy; such as +0.5%FS accuracy. And also, the ETC series performance extremely high resolution. For example, the 50N capable device can indicate minimum 0.01N. It means 1/5000 resolution.
Peak hold
Hold the peak value in test;
Peak hold and clean automatically
Hold the peak value, keep the value in 1-10 seconds (time is selected);
Auto power off
The gauge will power off in 1-60 minutes (time is selected), there is not operation;
Comparative function
Setting the upper limit and lower limit, the pilot lamp and buzzer to choose the eligible value;
Calculate the average value
Memory 10 data and calculate the average of memory data;
Three units
lbf, kgf, and Newton units are push-button selectable;
RS-232 series port digital output
The RS-232 series port output to printer. The printing data have max value, min value, eligible value and incompetent value.

1000N = 100Kg

The Included Software

---
