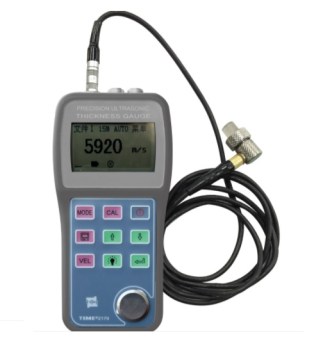

超聲波測厚儀 Ultrasonic Thickness Gauge for thin materials (minimum thickness up to 0.15mm for steel)

Model 2170 can measure super thin parts with minimum thickness up to 0.15mm for steel. On the other hand, it supports high precision measurement with the resolution up to 0.001mm.

It is designed to test the wall thickness and corrosion of various kinds of plates, pipes, boiler vessels, widely applied in industries like metallurgy, shipbuilding, machinery, chemical, petroleum, aerospace, aviation, electric power, nuclear energy, oil and gas pipelines, boiler inspection, pressure vessels and others, which plays an important role in safe operation of equipment and modernization management.

Features

• Especially suitable for testing the thin workpieces while keeping high accuracy
• I-E testing mode and E-E testing mode
• Sound velocity testing and single point calibration
• Sound alarm and different modes are available
• Free conversion between metric and imperial
• Up to 500 data can be stored, reviewed and deleted
• Backlight and adjustable contrast

Measuring range : 0.15~20mm

Display resolution : 0.001 mm and 0.01 mm selectable

Sound velocity range : 1000m/s~9999m/s

Power : AA batteries 1.5V(2 pcs)

Operating temperature : 0~40℃

Dimension (mm) : 152×74×35

Weight (g) 220

————————————————————————————————————

超聲波測厚儀 Ultrasonic Thickness Gauge

Model 100 超聲波測厚儀為目前市場上最暢銷的超聲波測厚儀，測量范圍為1.2mm～225.0mm，精度為0.1mm,適合測量金屬、塑料、陶瓷、玻璃、橡膠及其他任何超聲波的導體厚度.

Model 100 is a hand held microprocessor controlled thickness gauge specifically designed for measuring the thickness of metallic and non-metallic materials e.g. aluminum, titanium, plastics, ceramics, glass and other good ultrasonic wave-conductor as long as it has parallel top and bottom surfaces. With uses in many areas of industry 100 can perform precise measurements on various types of raw materials, components parts, and assembled machinery. It can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion.

extremely easy to use, after a simple calibration to a known thickness or sound velocity, the gauge will give accurate readings in millimeters . Sound velocities for 5 different materials can be preset

Features:
easy to operate
suitable for metal, glass, plastic & more
sound velocity up to 9999 m/s
clear 4 digital LCD display
resolution 0.1mm
5 preset sound velocity

Specification:

Display type:
4-digit LCD

Minimum display unit:
0.1mm

Measuring range:
1.0 mm- 225.0mm (in steel with standard probe)

Lower limit steel pipes:
minimum dia. 20mm x 3mm

Display resolution:
±0.1mm

Sound velocity range: 1000-9999m/s
Operating temperature: -10°C to +40°C
Frequency: 5MHz
Update rate: 2Hz

Power supply:
1.5V AA alkaline cells(2pcs)

Battery life:
250 hours with one battery set

Dimensions:
126×68×23mm
