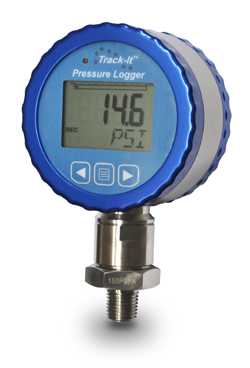

Track-It™ Data Loggers: Pressure/Temp, Vacuum/Temp With Display

The Track-It™ Pressure/Temperature and Vacuum/Temperature Data Loggers with Display are battery powered stand alone water tight compact data loggers that record up to 130,000 samples. They can be configured to record both Pressure or Vacuum and Temperature or either parameter alone to maximize data storage space. Real time data, alarms and min/max information can be displayed on the multi-line LCD. The unit is easily configured using the included Track-It™ Software. Simply connect the included USB cable to the logger and an open USB port on your PC and the Track-It™ Software automatically identifies the logger. Configure the unit to start or stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the event of a depleted battery. Track-It™ Pressure/Temp and Vacuum/Temp Data Loggers can be ordered in various ranges (see below). The logger is packaged in a rugged submersible anodized aluminum and stainless steel housing and has a standard 1/4” NPT fitting. The replaceable internal lithium battery has up to a 3 year life.
Track-It™ Transport Android App

The Track-It Pressure/Temperature loggers are compatible with free Track-It Transport Android application. The Transport Application allows you to use your Android device and an On-The-Go cable to retrieve data from the logger while in the field. Record start/stop and erase memory is also available.

The Track-It Transport App is available for free on Google Play: https://play.google.com/store/apps/details?id=com.trackit.transporter
Features

Display live and min/max readings
Alarm set-points and indicators
User definable engineering units
USB interface (cable included!)
Interactive software (free!)
Rugged IP67 package
3 year battery life (battery included!)
Temperature range –4 to 185°F (-20 to 85°C )
35, 150, 350, 550, 2000, 5800 PSI ranges
760 to 380 and 760 to 0 torr
150% over range protection
¼” NPT male connection
High accuracy and repeatability
Accurate internal clock (1 minute/year)
N.I.S.T. calibration available
Rotate head AND display 359 degrees

Typical Uses

Industrial Process
Food Manufacturing
Water Supply Line
Hydrant Water Pressure
Household Water Pressure
Building Supply
Municipalities
HVAC
Oil and Gas
Petro Chemical
Compressors
Pumps
Hydrostatic Testing
Water and Wastewater

—————————————————
