內窺鏡 Borescope Fiberscope with camera and video recording

纖維內窺鏡配備有LED光源，TFT顯示器，相機和記錄器。

專門設計用於修理業，纖維內窺鏡可以提供一個完全不同的工作經驗。 它使團隊的討論，同時輸出圖像到電視監控，甚至允許與客戶更好地溝通。

產品特點：

5.5毫米外徑
4超強度照明功率白光LED
優化設計的光源
快速裝配鏡頭模塊
3.5“超寬視角TFT

Borescope

Fiberscope with camera and video recording

It can perform all jobs of the traditional industrial borescope because the palm size monitor fiber scope is equipped with an LED light source, TFT display, camera and recorder.

Furthermore, the fiber scope will enhance working efficiency because of its revolutionary mobility and friendly price.

Especially designed for the repair industry, the fiber scope can offer a totally different working experience. It enables team discussion while outputting the image to a TV monitor, and even allows better communication with the customers.

We know what your concerns are & we deliver what you need.

Features:

5.5 mm external diameters
4 super strength lighting power white light LED
oil and scratch resistant
optimize illuminant design
rapid assemble lens module
you can operate this system accurately and rapidly with your gloves on
3.5″ extra-wide view angle TFT



________________________________________________________________

柔性內窺鏡

美國製造

提供卓越的圖像質量，並允許封閉區域的快速檢查。 節省時間和金錢，防止複雜的機器不必要的拆卸。 可用在具有各種長度和5.8 5mm或10mm直徑。

符合人體工程學設計的手柄是舒適舉行，並允許單手焦點和光激活。

應用程序-的可能性是無窮的

機械學
焊工
管道工
督察
木匠
暖通空調維修
電工
執法
滅蟲
和更多…

訂購信息
型號 描述
7831-0901 纖維鏡，內部照明，長度為24英寸×5.8毫米直徑與鹵素燈
7831-0903 纖維鏡，內部照明，長度36英寸×5.8毫米直徑與鹵素燈
7831-0905 纖維鏡，內部照明，長度48英寸×5.8毫米直徑與鹵素燈

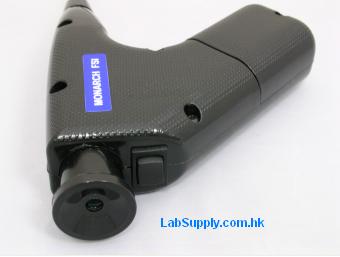

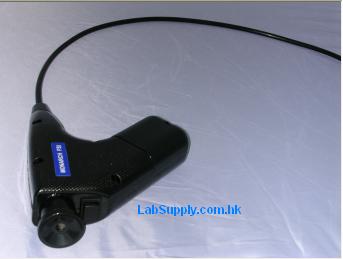

Flexible Borescope

Made in USA

Provide superior image quality and allow quick inspection of enclosed areas. Save time and money preventing unnecessary disassembly of complex machines. Available in models with a variety of lengths and 5.8 mm or 10 mm diameters.

Based on innovative new fiber optic technology, the flexible cable of the fiberscope fits into holes as small as ½ inch diameter – allowing you to look behind walls, down into drains, inside engines, or hundreds of places without costly demolition or disassembly!

The high-resolution lens provides a clear image of objects as close as ¾ inch and over one foot away while providing a wide 40 degree field of view. A powerful lamp illuminates dark crevices on-demand with the push of a button conveniently located on the handle. The ergonomically designed handle is comfortable to hold and allows one-handed focuses and light activation.

Features

Powerful lamp illuminates dark locations for clear viewing
Flexible, omni-directional cable bends in every direction to allow precise viewing
Pressure activated light switch is conveniently located but cannot be accidentally left “on"
Integrated focus ring for smooth, continuous focusing
Ergonomically designed, non-slip handle fits comfortably in one hand
Cable will reach deep into walls, drains, vents, engine blocks, requires only a ½ inch opening.

Applications-The possibilities are endless

Mechanics
Welders
Plumbers
Inspectors
Carpenters
HVAC Repair
Electricians
Law Enforcement
Exterminators
Home Owners and more…

Technical specifications
Number of pixels 7400
Field of view 40°
Minimum focus distance 0.75 inch
Operating Temperature -10 to 120° F
Housing ABS plastic
Bending radius 3 inches
Water and Chemical Resistant

Accessories

Magnet Attachment for Monarch Fiberscopes 5.8mm or 10mm Mirror Attachment for Fiberscopes 5.8mm or 10mm



Ordering Information

Model         Description
7831-0901   Fiberscope, Internal Light, length 24 inches x 5.8mm diameter with Halogen lamp
7831-0903    Fiberscope, Internal Light, length 36 inches x 5.8mm diameter with Halogen lamp
7831-0905   Fiberscope, Internal Light, length 48 inches x 5.8mm diameter with Halogen lamp

Accessories
Model Description
7831-0951    Compact Xenon Flashlight, Scorpion 85001 with batteries and spare Xenon lamp
7831-0953    Mirror Attachment for 5.8mm diameter models
7831-0954    Mirror Attachment for 10mm diameter models
7831-0955    Magnet for Attachment for 5.8mm diameter models
7831-0956    Magnet for Attachment for 10mm diameter models

Replacement Parts
Model Description
7831-0952    CR123 Lithium replacement Battery for Scorpion Flashlight
7831-0957    Spare Halogen lamp for FSI-H Models only
7831-0958    Ultra Photo Lithium Battery (DL223) for FSI-H Models only
